Leica DISTO D510 Laser Distance Meter / Rangefinder

Leica DISTO D510 Laser Distance Meter / Rangefinder

Category：

RANGE FINDER

Product description

The D510 can handle many types of measurement tasks that AEC professionals regularly need to complete. It covers the basics but also includes more advanced features, like Smart Horizontal and Height Tracking. And it excels at complex measurements such as our Trapezium Function, which allows you to measure the slope, length, and area of a roof from one location.

Contact now

Product Details

Rugged yet elegant.

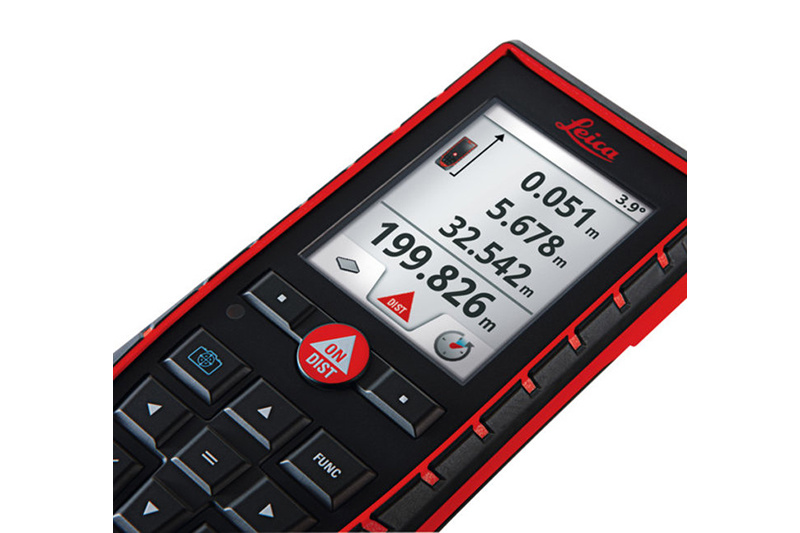

The D510 may not look quite as rugged as the X-series DISTOs, but it's just as tough-yes, you can wash it off under running water. It's also an elegant device with a high-resolution color display and a few more buttons to quickly access certain features, like the pointfinder camera.

More than the eye can see.
The D510 laser module can read a target at distances that exceed your ability to see the laser point. With the pointfinder camera that has a 4x zoom digital camera, you can find your target in the display crosshairs, which extends the useable range to the 660' (200m) maximum for certified accuracy. For greater stability at that range, we recommend using the D510 with a tripod and our Fine Tune Adapter.

Typ. distance measuring accuracy	±1mm
Range	0.05 up to 200 m
Measuring units	m, ft, in
X-range power technology	Yes
Distance in m	10, 50, 100 m
ø of the laser dot in mm	6, 30, 60 mm
Tilt sensor	Yes
Tilt sensor accuracy to the laser beam	± 0.2°
Tilt sensor accuracy to the housing	± 0.2°
Units in the tilt sensor	0.0°, 0.00 %
Units in the tilt sensor	mm/m, in/ft
Pointfinder with zoom	4 x
Memory for last measurements	30
Display illumination	Yes
Free software for Windows	Yes
Free App for iOS and Android	Yes
General data interface	Bluetooth® Smart
Measurements per set of batteries	up to 5,000*
Service life of batteries	up to 10 h*

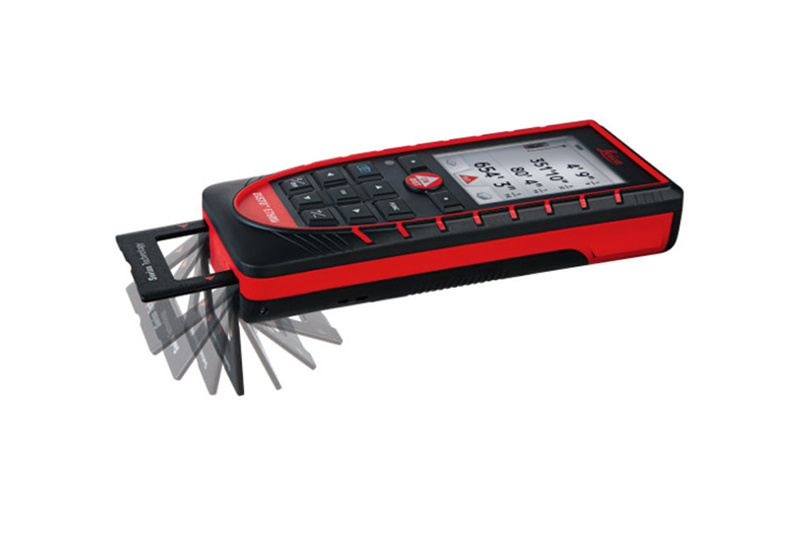

Multifunctional endpiece	Yes
Automatic reference detection for endpiece	Yes
Tripod thread	1/4"
Batteries	Type AA 2 × 1.5 V
Weight with batteries	198 g
