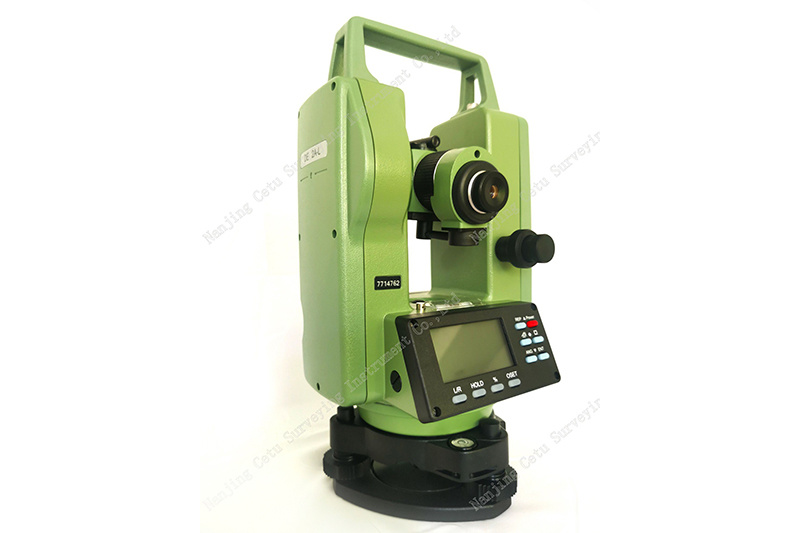

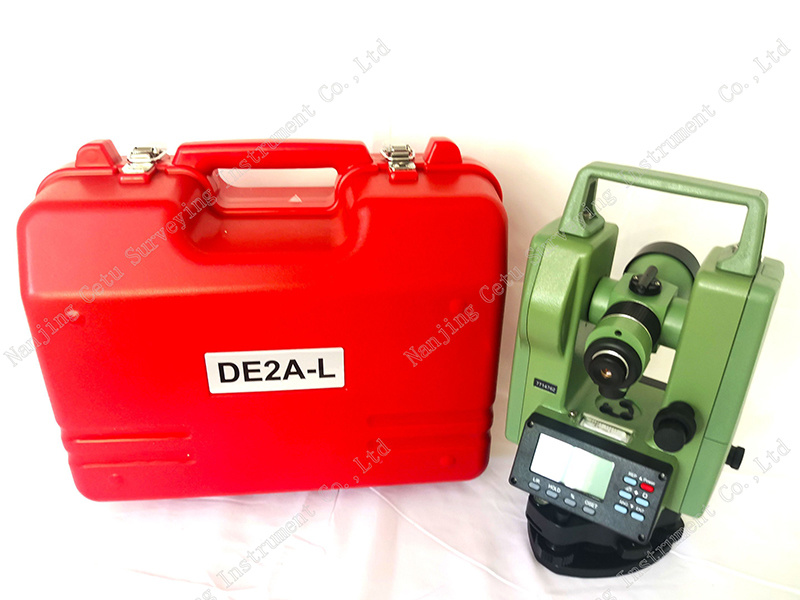

DADI DE 2A Electronic Theodolite
Product description
Product Details
1.Absolute coding angle measurement system, digital and intelligent angle measurement, stable and reliable work.
2.Double-sided LCD panel, clear display and easy to operate.
3.Highly integrated circuit board, high-quality IC components, imported CCD sensor, quality assurance.
4.Using steel shaft system, imported lubricating grease, metal shell, long service life.
5.Independent tilt sensor for automatic correction of tilt errors.
6.Sealed waterproof telescope.
7.Coaxial locking screw and fine-tuning screw for easy measurement.
8.International common functional mode, easy and standardized operation.
|
Telescope |
|
|
Imaging |
Positive |
|
Magnification |
30X |
|
Objective lens effective aperture |
47mm |
|
Resolution |
3.75'' |
|
Field Angle |
1°30′ |
|
Shortest Sight Distance |
1m |
|
Stadia Multiplication Constant |
100 |
|
Lens Barrel Length |
162mm |
|
Angle Measurement |
|
|
Angle Measure Method |
Absolute Encode |
|
Angle Measure Precision |
2″, 5″ |
|
Minimum reading |
1″,5″,10″ |
|
Angle Measure Unit |
360°,400gon,6400mil |
|
Level |
|
|
Long Level |
30″/2mm |
|
Circle Level |
8′/2mm |
|
Compensation |
|
|
System |
Liquid capacitive |
|
Working Range |
±3′ |
|
Resolution |
1″ |
|
Plummer (Laser & Optical Optional) |
|
|
Optical Plummer |
|
|
Imaging |
Positive |
|
Magnification |
3X |
|
Focus range |
0.3m~∞ |
|
Field Angle |
5° |
|
Laser Plummer |
|
|
Laser Wavelength |
650nm |
|
Laser Power |
5mw |
|
Laser Level |
II |
|
Effective Range |
0~3m |
|
Spot Size |
1mm/1.5m |
|
Battery |
|
|
Power Source |
Rechargeable NiMH Battery |
|
Voltage |
DC 6V |
|
Continous Working Time |
BDC1800mAh About 10 hours |
|
Temperature |
|
|
Working Temperature |
-20ºC~+45ºC |
|
Size & Weight |
|
|
Size |
180X166X355mm |
|
Center High |
232mm |
|
Weight |
6.5kg |
