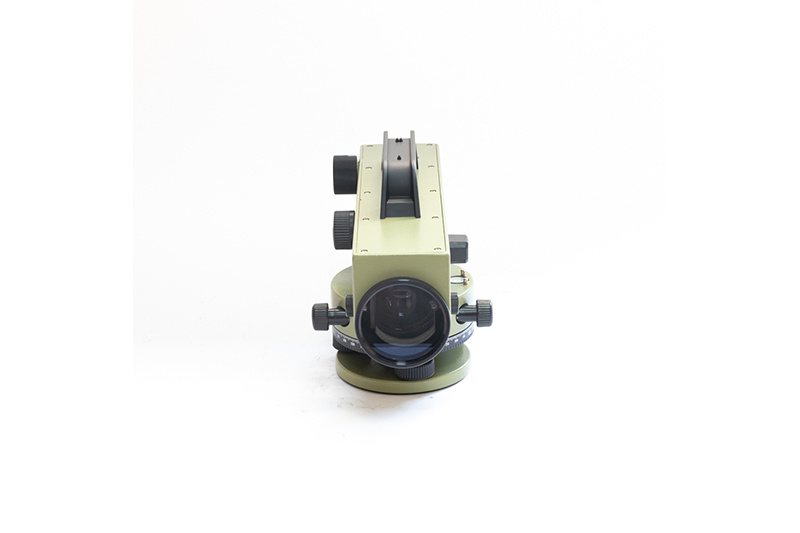

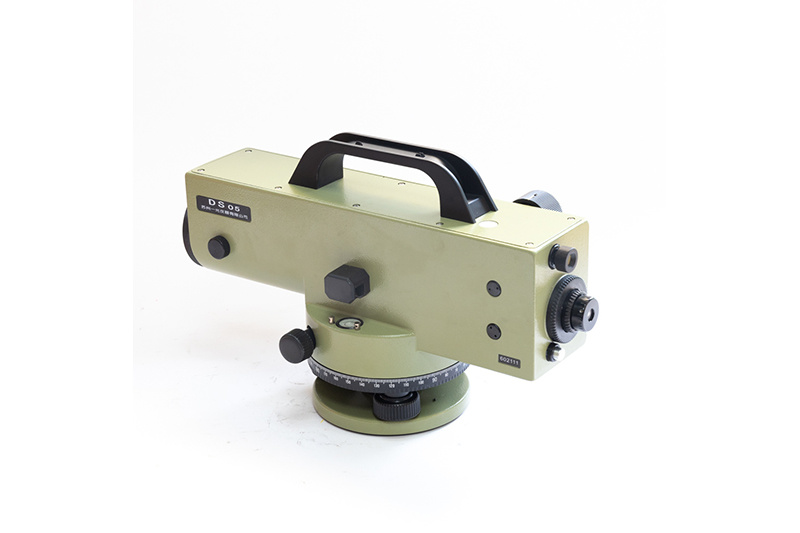

FOIF DS05 Auto Level
Product description
Product Details
The DS05 level is a built-in micrometer flat structure. The instrument adopts a fully sealed design, and the sealing level can reach IP55; the magnification is larger, and the observation target is clearer; the fixation of the compensator adopts a new method that is more reliable and improves the stability of the instrument sex. The appearance of the instrument is balanced and coordinated, the placement is more stable, the centering performance of the level is better, and the use is more convenient and quick.
|
Technical parameters (using high-quality indium steel ruler) |
|
|
Standard deviation of the round-trip measurement height difference per km |
≤0.5mm |
|
Telescope |
Erect |
|
Magnification |
38× |
|
Objective lens diameter |
45mm |
|
Shortest sight distance |
1.6m |
|
Accuracy |
±0.3″ |
|
Circular level sensitivity |
10′/2mm |
|
Compensator working range |
30′ |
|
Measuring range |
10mm |
|
Measuring scale value |
0.1mm |
|
Estimated reading |
0.01mm |
