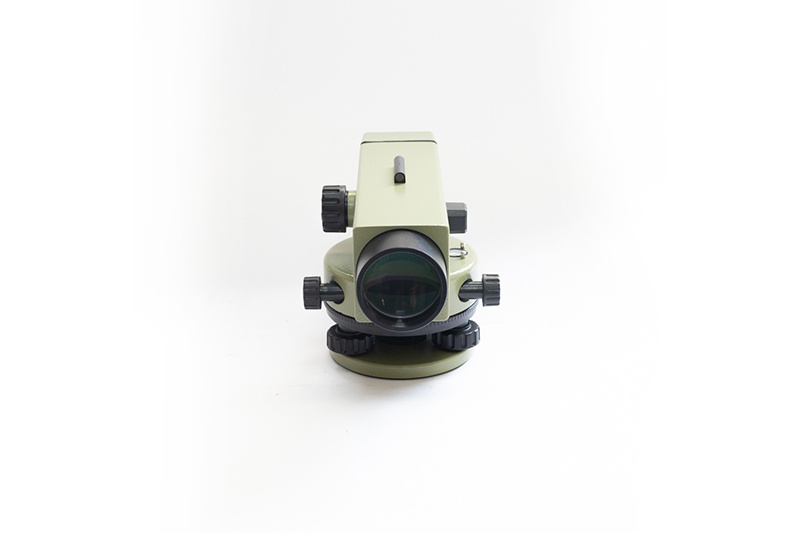

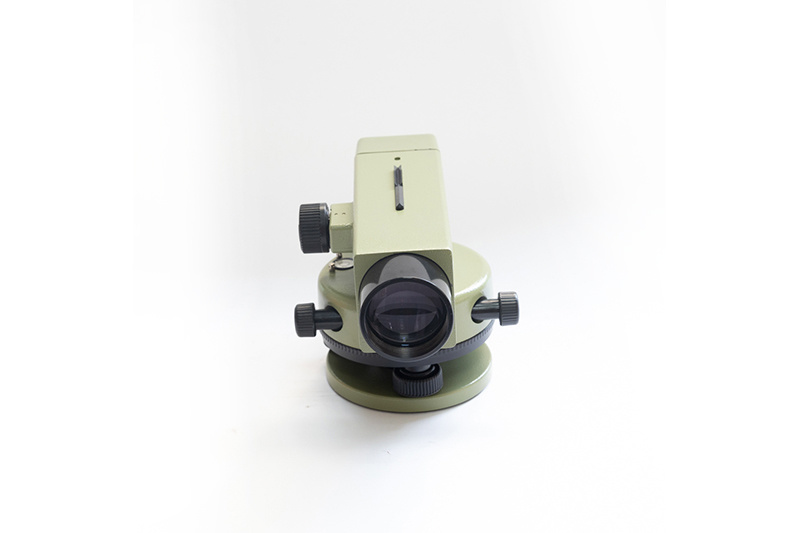

FOIF DSZ2 Auto Level

Category：

AUTO LEVEL

Product description

Our company can support you with this kind of surveying & mapping instrument. Here you can get a view of some hot-selling and high-quality model:

Contact now

Product Details

1.Compensator check button

2. Sealed and dustproof, easy to operate

3. Compact structure and beautiful appearance

4. A trim micrometer can be added, which can be used for national secondary leveling and settlement observation

5. Good temperature compensation performance

Model		DSZ2	DSZ3
Standard deviation of 1KM double run leveling		≤±1.0mm	≤±2.0mm
Telescope	Image	Erect
	Magnification	32 ×	24 ×
	Clear Objective aperture	40mm	36mm
	Shortest focusing distance	1.6m	0.7m
	Stadia ratio	100
	Stadia constant	0
Compensator	Working range	±14′
	Setting accuracy	≤±0.3″	≤±0.5″
	Setting time	≤2S
Sensitivity of circular level per 2mm		8′/2mm
Graduation interval of horizontal circle		1 ° / DIV
Working temperature		-30°C-+50°C
Weight		2.5kg	2.0kg

Nanjing Cetu Surveying Instrument Co., Ltd. was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992), which was the former sales & service platform of Nanjing Surveying instrument Factory.

The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie, etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition, Trimble(America) authorized our company as a special contractor.

Over the decades, we have established great credit in the business, and we got the support of global users. "Quality first, customer first", we will always do our best to provide professional services for our customers.
