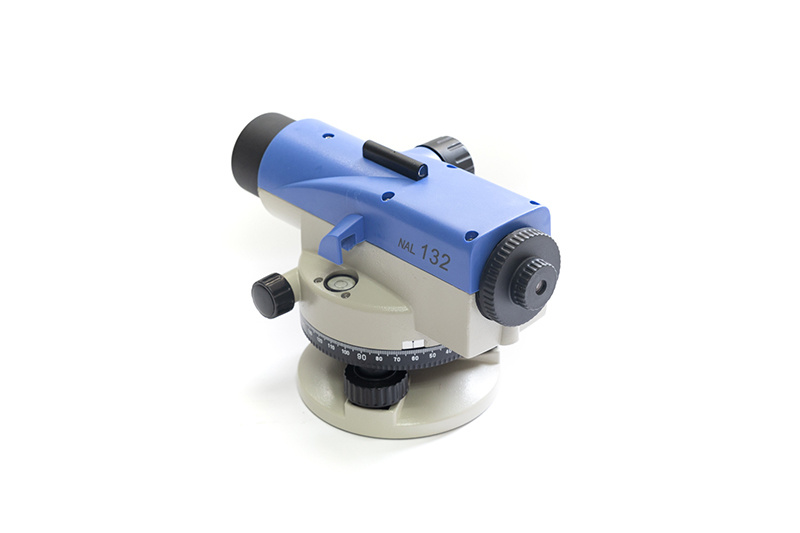

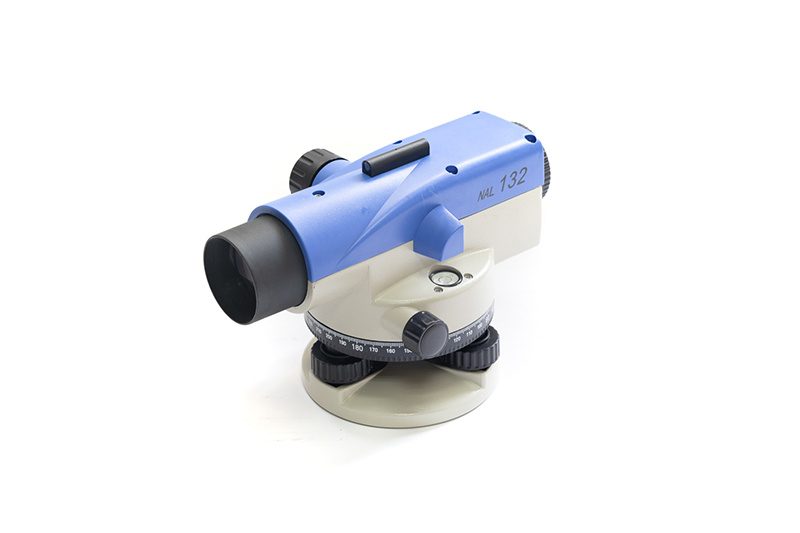

FOIF NAL132 Auto Level

Category:

Product description

NAL series leveling instruments can be used for national third- and fourth-level leveling observation, meeting various construction engineering and leveling requirements. This product has automatic compensation function, which can greatly improve work efficiency and avoid errors.
Contact now

Product Details


1.The compensator adopts cross hanging wire structure, air resistance

2. Self-contained check button to avoid compensator errors

3. The telescope is sealed and waterproof, and the waterproof level reaches IP55 IEC529 (international standard)

4. With short sight distance telescope, it can be used for interior decoration

5. Adopt eco-friendly color pop design



Type

NAL124
NAL224

NAL132
NAL232

NAL324

Standard deviation of measurements per kilometer round trip

±2.0mm

±1.0mm

±2.5mm

Telescope


Erect

Magnification

24×

32×

24×

Shortest sight distance

0.8m

1m

0.8m

Compensator

Range

±15′

Accuracy

±0.5″

±0.4″

±0.5″

Circle level

8′/2mm

Working temperature

-30°~ +50°

Weight

2kg

1.5kg
