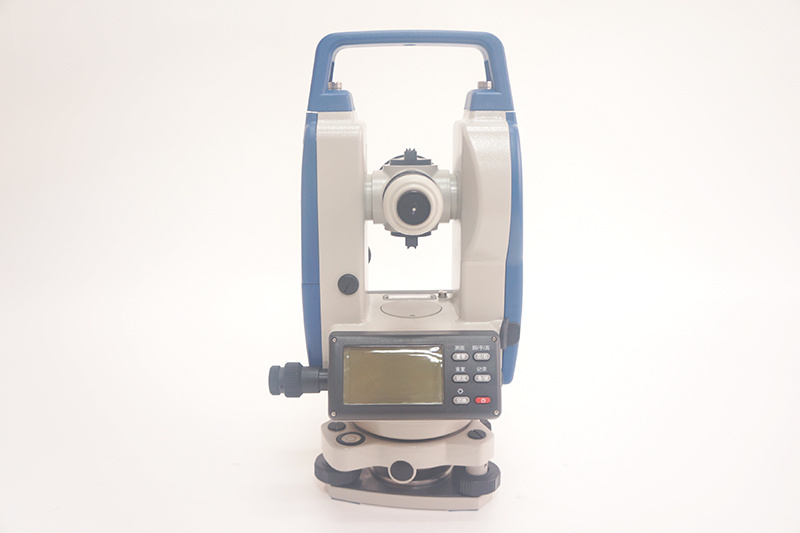

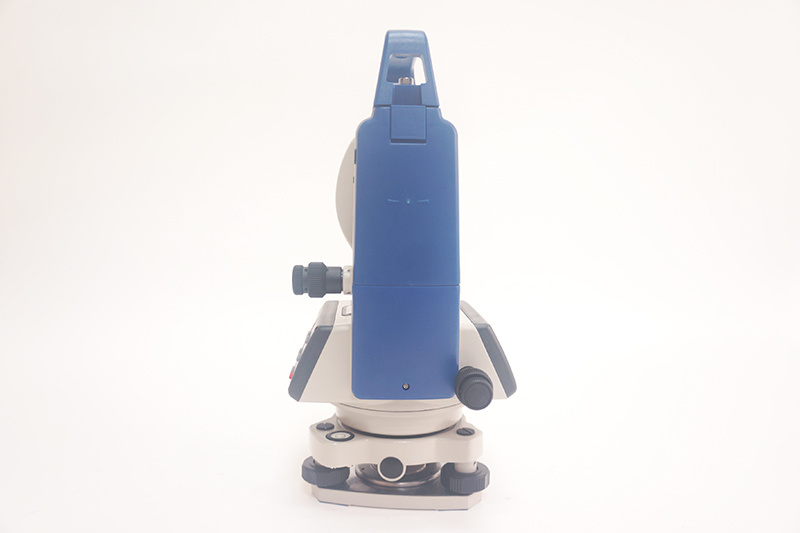

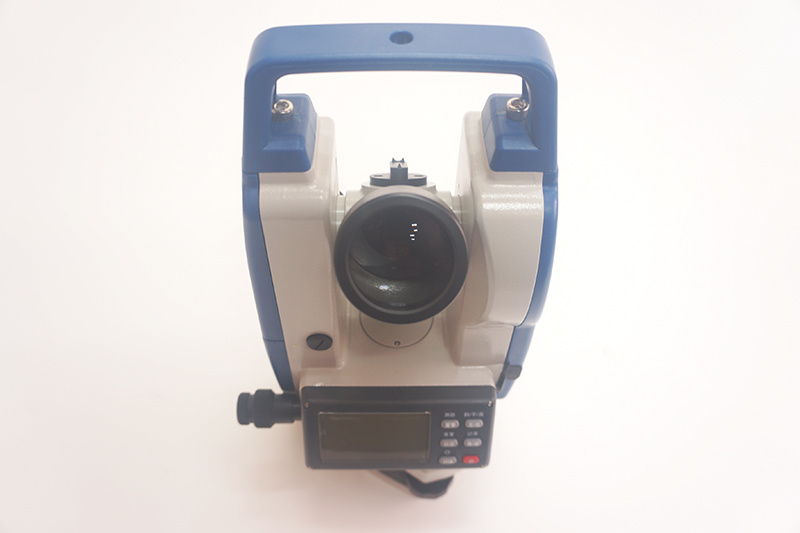

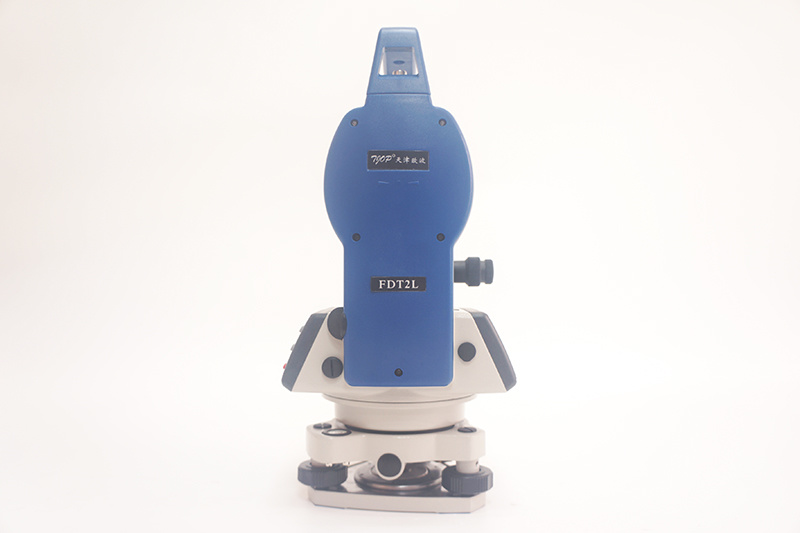

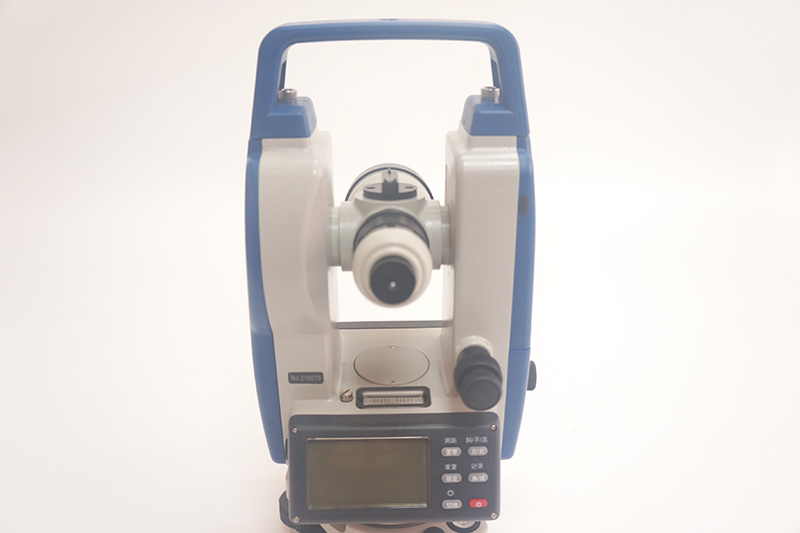

TJOP FDT2L Electronic Theodolite
Product description
Product Details
1.Absolute coding angle measurement.
2. The telescope laser is visible.
3. Powered by large-capacity NiMH batteries.
4. Large screen display.
5. It can realize two-way communication with PC.
Telescope |
|
Lens barrel length |
156mm |
Image |
Erect |
Objective diameter |
45mm |
Magnification |
30X |
Resolution |
3.5'' |
Field of view |
1°30' |
Minimum sight distance |
1.3m |
Sight distance multiplication constant |
100 |
Stadia addition constant |
0 |
Angle measurement |
|
Measuring method |
Absolute encoded |
Reading method |
|
|
|
Minimum reading |
1"/5" |
Precision |
2" |
Display |
Double screens |
Compensator |
|
Tilt sensor |
Yes |
Compensation range |
±3' |
Communication interface |
|
Communication standrad |
RS232C |
EDM communication interface |
Yes |
Data output interface |
Yes |
Memory point |
500 points |
Plummet |
|
Image |
Erect |
Magnfication |
30X |
Field of view |
5° |
Precision |
±1mm |
Tribatch |
|
Type |
Detachable tribatch |
Battery |
|
Battery |
Rechargeable/4 AA alkaline batteries |
Working time |
Approx. 20h |
New features |
|
Visible laser |
|
Bulit-in battery |
|
Others |
|
Weight |
4.8kg |
Working temperature |
-20°C~+50°C |
