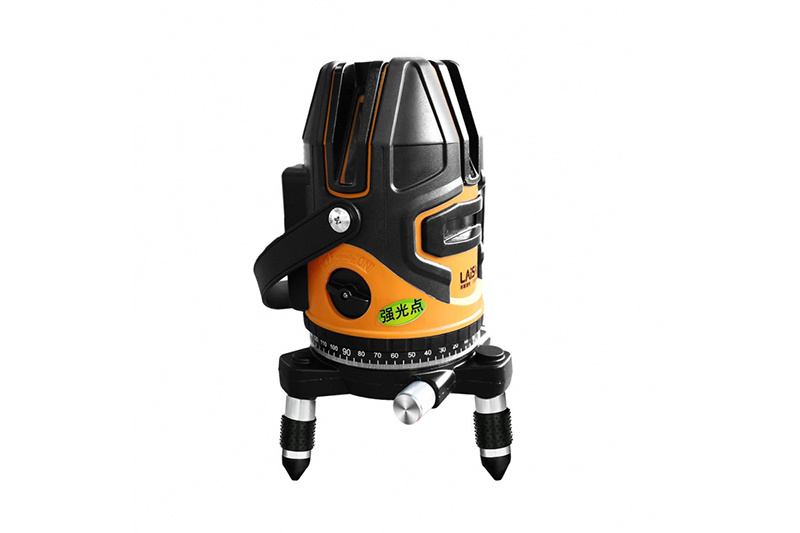

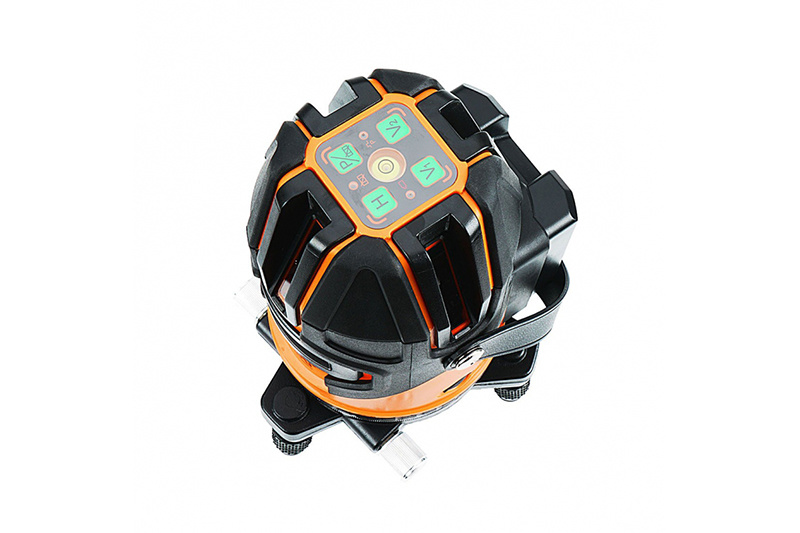

LAISAI LSG686SPD Line Laser Level

Category:

Product description

Our company can support you with this kind of surveying & mapping instrument. Here you can get a view of some hot-selling and high-quality model:
Contact now

Product Details


  1. Tradition pressing button
  2. Output 5 laser lines and 3 laser dots
  3. Form 2 cross laser line
  4. Compatible for both indoor and outdoor applications
  5. Self-leveling, laser flash and sound indication when beyond self-leveling range
  6. Able to shield alarming function and use for tilt purpose
  7. Height can be fine adjusted by supporting leg of tripod base
  8. All metal base
  9. 360° two way fine adjustable

Diode

Green

Leveling method

Self-Leveling

Plumb down dot or plumb down cross line

Yes

Fine adjusting function

Yes

Tilt function

Yes

Pulse function(with receiver)

Yes

Laser lines

5

Laser dots

3

Cross laser lines

2

Laser wavelength

515nm

Laser class

Class II

Accuracy

±0.2mm/m

Leveling range

±3°

Temperature range

-10°C~+45°C

Power supply

Li battery box or adpater

Size

100*220mm

Weight

1.25kg



Nanjing Cetu Surveying Instrument Co., Ltd. was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992), which was the former sales & service platform of Nanjing Surveying instrument Factory.

The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie, etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition, Trimble(America) authorized our company as a special contractor.



Over the decades, we have established great credit in the business, and we got the support of global users. "Quality first, customer first", we will always do our best to provide professional services for our customers.
