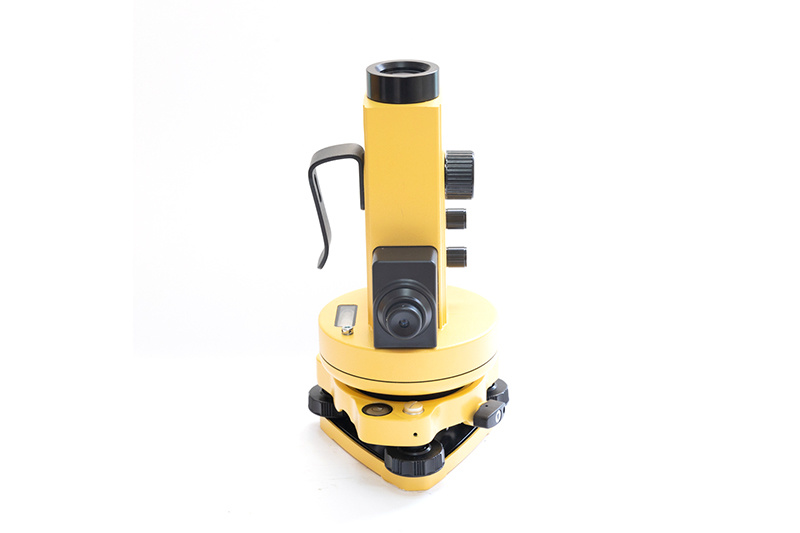

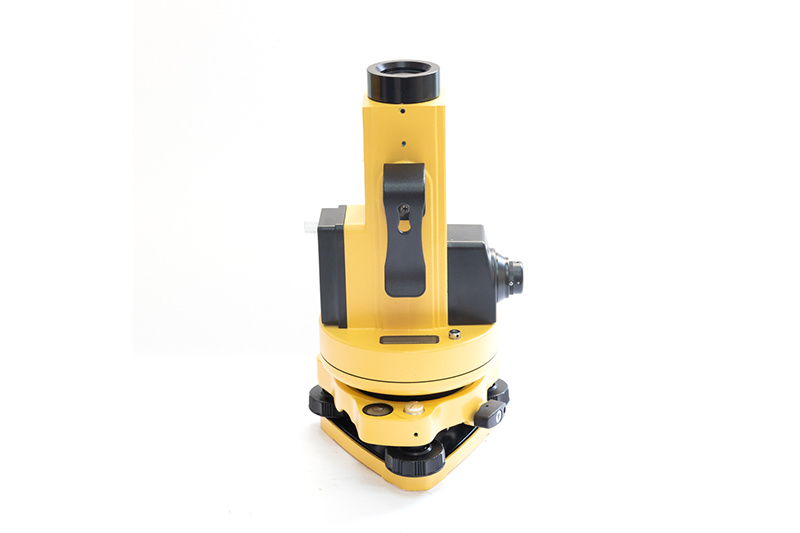

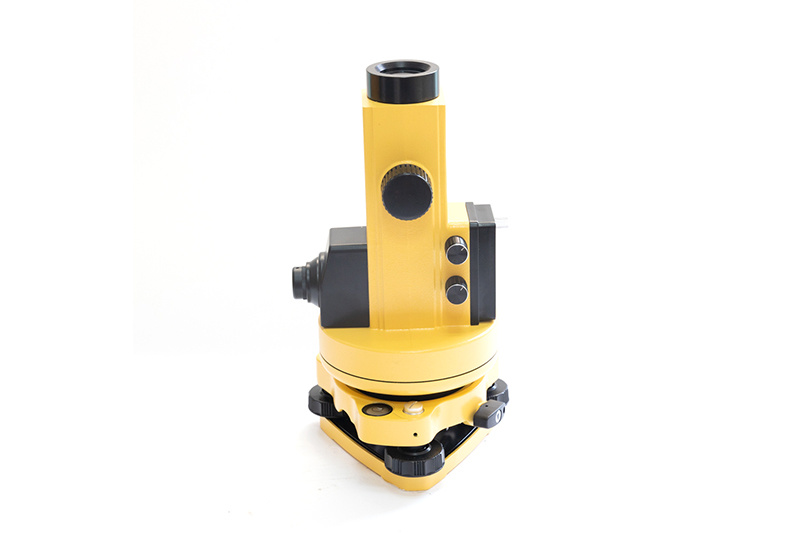

Kolida ML-401S Laser Plummet
Product description
Product Details
Kolida ML-401S is based on the optical collimation system with the addition of a semiconductor laser, which can project two laser plumb lines at the same time, which are concentric, coaxial and co-focal with the collimation axis of the telescope; The special filter can be directly observed by the human eye; it is suitable for construction, equipment installation, engineering supervision, deformation observation and other projects.
|
ML401S Laser Plummet |
|
|
Standard deviation of vertical alignment |
1/45000 |
|
Long level accuracy |
20″/2mm |
|
Working temperature range |
-25ºC ~ +45ºC |
|
Power |
Output power 0.1mw with 2 AA batteries |
|
Laser spot size |
|
|
Spot diameter at 40m |
≤4mm |
|
Spot diameter at 100m |
≤5″ |
|
Coaxial error between sight axis and vertical axis |
≤2mm |
|
Coaxial error between laser optical axis and collimation axis |
≤5″ |
|
Laser effective range(daytime) |
≥150m |
|
Laser effective range(night) |
≥500m |
|
Semiconductor laser |
|
|
Wavelength |
630nm |
|
Laser class |
Class II |
|
Voltage |
3V |
|
Laser pointer |
|
|
Shortest sight distance |
0.5m |
|
Point-to-point error |
≤1mm |
|
Telescope |
|
|
Effective aperture |
33mm |
|
Magnification |
25x |
|
Field of view |
1°20′ |
|
Shortest sight distance |
0.8m |
|
Size & Weight |
|
|
Size |
130x110x265mm |
|
Weight |
2.5kg |
