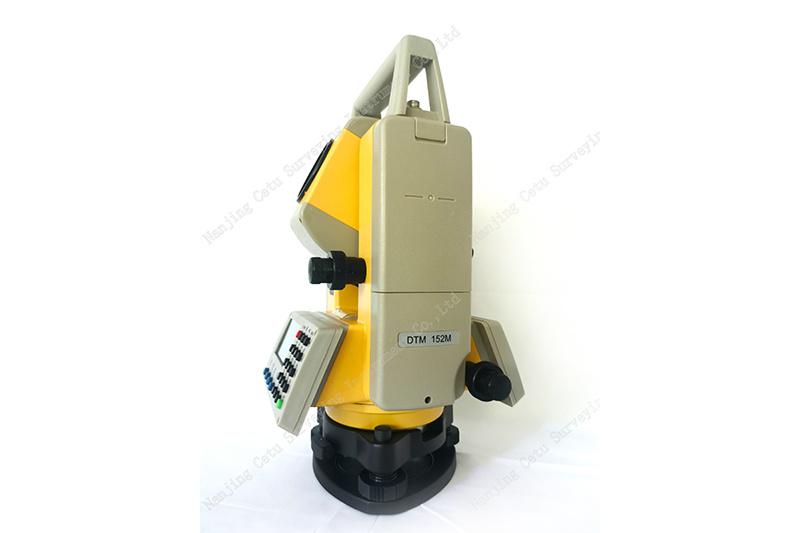

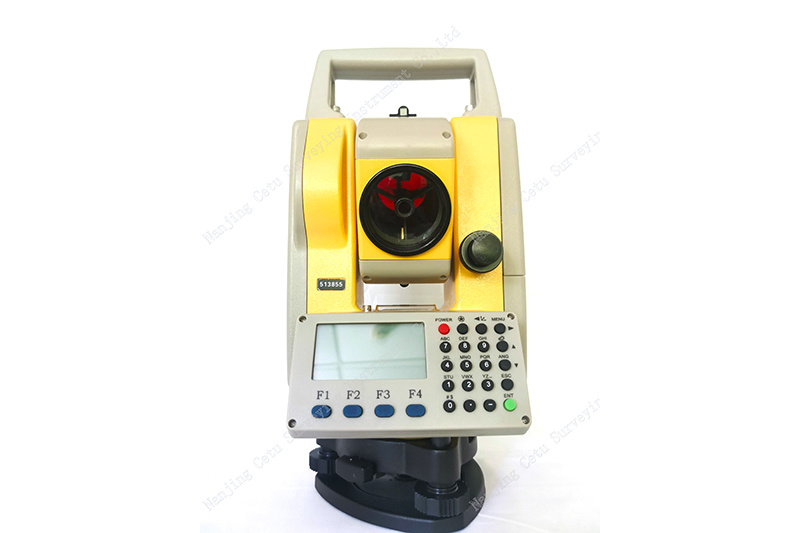

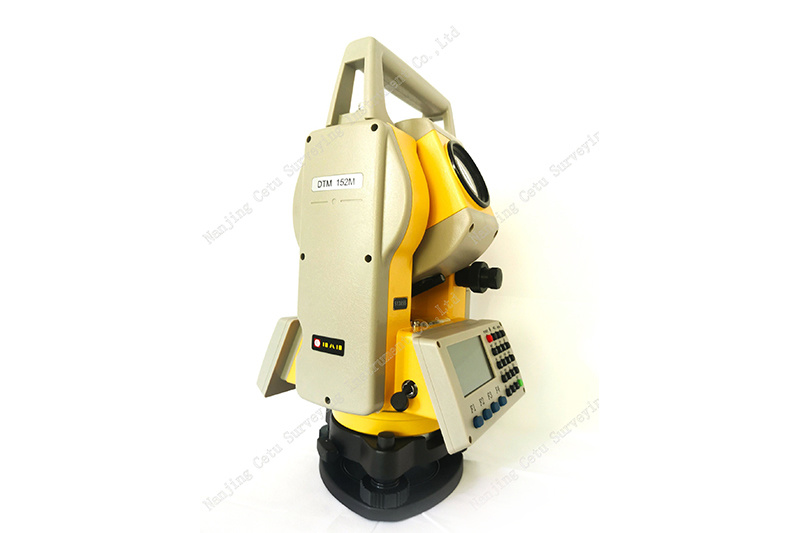

DADI DTM-152M Total Station
Product description
Product Details
1.Laser Non-Prism Ranging
2. Absolute coded goniometer
3. Dual axis electronic compensation
4. Simple and convenient operation
5. Large LCD display
6. Extensive measurement program
7. Mass data storage
Distance measurement |
|||
Range |
Single prism |
1800m visibility:23.5km |
|
Triple prism |
3200m visibility:23.5km |
||
Precision |
±(2mm+2ppm·D),±(3mm+2ppm·D) |
||
Unit |
m/ft |
||
Minimal display |
1mm |
||
Measuring time |
Precision measurement delay 2 seconds, tracking 0.5 seconds |
||
Angle measurement |
|||
Angel measuring method |
|
||
Grating diameter |
79mm |
||
Minimun Reading |
1″ |
||
Detection method |
Vertical |
Antipodal |
|
Horizon |
Single |
Antipodal |
|
Precision |
2″ |
||
Telescope |
|||
Image |
Erect |
||
Lens barrel length |
172mm |
||
Objective lens effective aperture |
48mm |
||
Magnification |
30X |
||
Field of view |
1.5° |
||
Resolution |
3.75″ |
||
Minimum focus distance |
1m |
||
Tilt compensator |
|||
System |
Single-axis liquid compensator |
||
Working range |
±3′ |
||
Resolution |
1″ |
||
Display |
|||
Type |
Double-sided, 240X160 graphic dot matrix LCD display |
||
Data transmission |
|||
Interface |
USB,RS-232C |
||
Storage capacity |
More than 16,000 points |
||
Others |
|||
Plummer |
Optical/Laser plummet |
||
Battery |
Rechargeable lithium battery, DC7.2V, 3000mAh |
||
Continuous working time |
More than 10 hours |
||
Weight |
6kg |
||
Working temperature |
-20ºC~50ºC |
Nanjing Cetu Surveying Instrument Co., Ltd. was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992), which was the former sales & service platform of Nanjing Surveying instrument Factory.
The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie, etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition, Trimble(America) authorized our company as a special contractor.
Over the decades, we have established great credit in the business, and we got the support of global users. "Quality first, customer first", we will always do our best to provide professional services for our customers.
