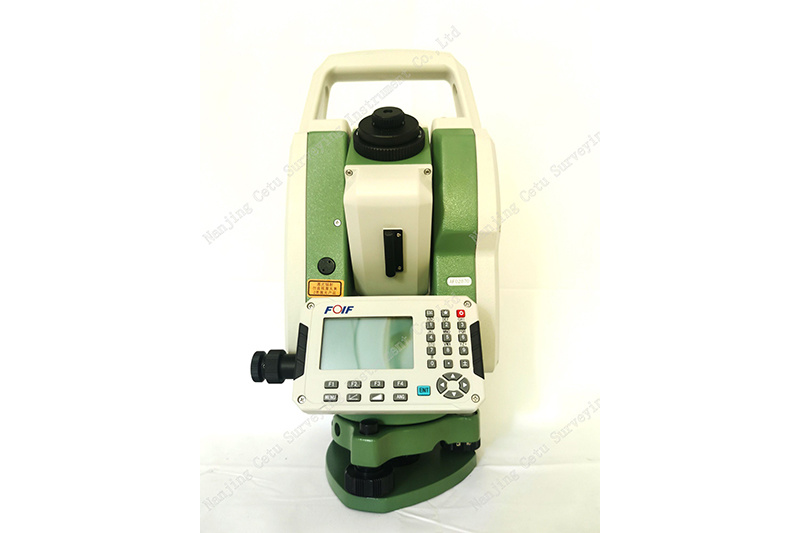

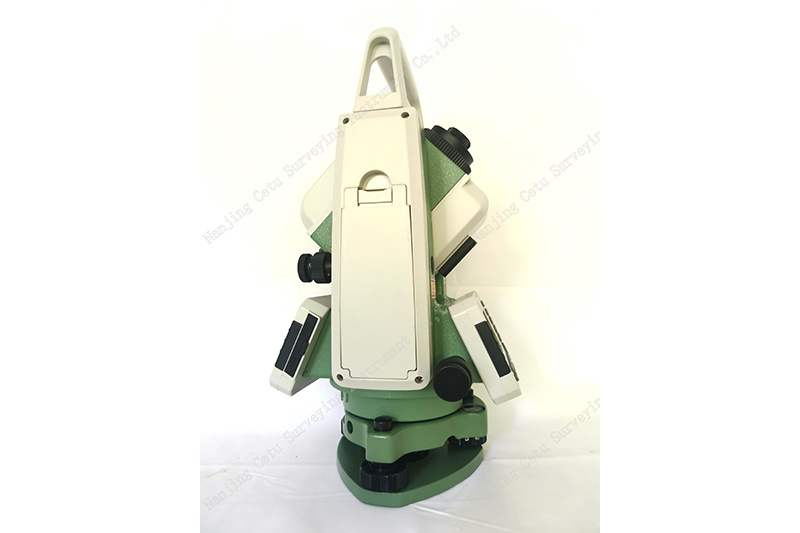

FOIF RTS 112S+ Total Station
Product description
Product Details
1.New stand design
2.New fast digital distance measuring head
3.32-bit microprocessor
4.Optimize software operation process
5.6-line LCD display
6.One-key quick measurement
7.SD card storage
Telescope |
|
Imaging |
Positive |
Magnification |
30X |
Objective Lens Effective Aperture |
50mm |
Resolution |
3.75'' |
Field Angle |
1°30′ |
Shortest Sight Distance |
1m |
Angle Measurement |
|
Angle Measure Method |
Absolute Encode |
Angle Measure Precision |
2″ |
Minimum reading |
1″,5″ |
Distance Measurement |
|
Precision |
±(2mm+2×10-6·D) |
Distance Measurement |
8′/2mm |
Compensation |
|
System |
Liquid capacitive |
Working Range |
±3′ |
Resolution |
1″ |
Plummer (Laser & Optical Optional) |
|
Optical Plummer |
|
Imaging |
Positive |
Magnification |
3X |
Focus range |
0.3m~∞ |
Field Angle |
5° |
Laser Plummer |
|
Laser Wavelength |
650nm |
Laser Power |
5mw |
Laser Level |
II |
Effective Range |
0~3m |
Spot Size |
1mm/1.5m |
Battery |
|
Power Source |
Rechargeable NiMH Battery |
Voltage |
DC 6V |
Continous Working Time |
BDC1800mAh About 10 hours |
Temperature |
|
Working Temperature |
-20ºC~+45ºC |
Size & Weight |
|
Size |
180X166X355mm |
Center High |
232mm |
Weight |
6.5kg |
