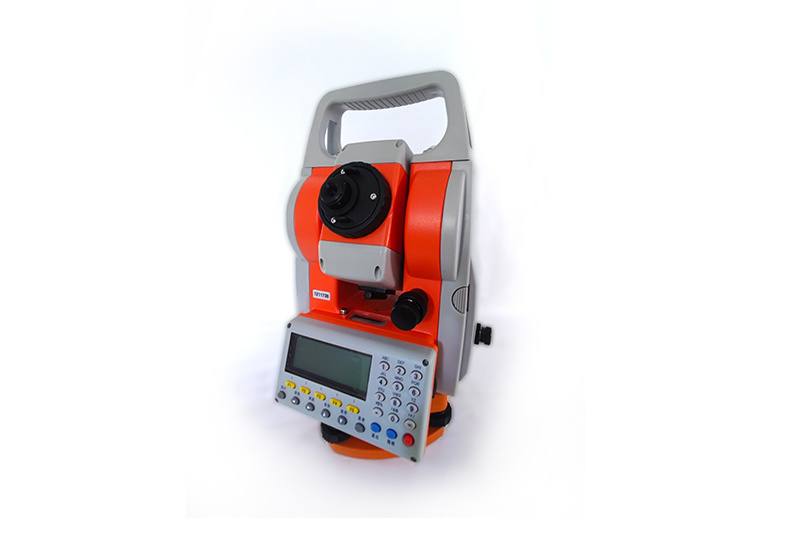

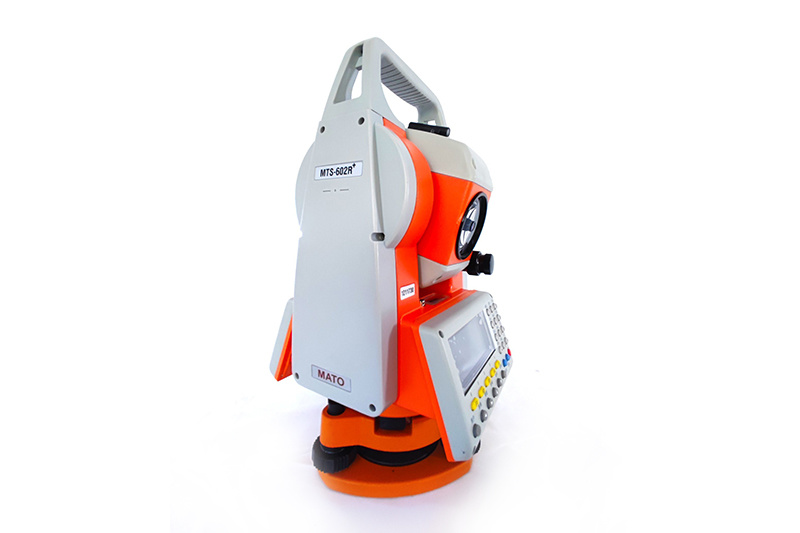

MATO MTS-600 Series Total Station

Category:

Product description

The target customers of MATO MTS-600 Series Total Station are engineering companies that usually use total stations but lack of well-trained measuring technicians. The benefits of this instrument include its high-precision, easy-operation, and one key for angle measurement/ ranging/ lofting etc.
Contact now

Product Details


1.Commonly used functions such as resection, one key measuring storage complicity etc. can be set manually by the users onto the "User" key as one pleases.


2. The operation efficiency is 30% higher than other total stations.



MTS600 Series One Key Survey Engineering Type Total Station

Main Technical Specifications

MTS602R

MTS602R+

MTS602R8

MTS605R

Telescope

Magnification

30X

Field angle

1°30′


Erect

Angle measurement

Minimum reading

1″

1″

1″

1″

Accuracy

2″

5″

Distance measurement

Minimum reading

1mm

1mm

1mm

1mm

Prism accuracy

±(2 mm+2 ppm*D)

Reflector accuracy

±(2 mm+2 ppm*D)

Non-prism accuracy

±(5 mm+3 ppm*D)

Single prism range

5000m

7500m

7500m

5000m

Reflector range

800m

1000m

1000m

800m

Non-prism range

400m

600m

800m

400m

Data management

Memory point

50,000 points

SD card

Optional

USB drive

Optional

Bluetooth

Optional

Display

Dual 192*64 pixel

Working temperature

-20ºC~55ºC



Nanjing Cetu Surveying Instrument Co., Ltd. was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992), which was the former sales & service platform of Nanjing Surveying instrument Factory.

The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie, etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition, Trimble(America) authorized our company as a special contractor.



Over the decades, we have established great credit in the business, and we got the support of global users. "Quality first, customer first", we will always do our best to provide professional services for our customers.
