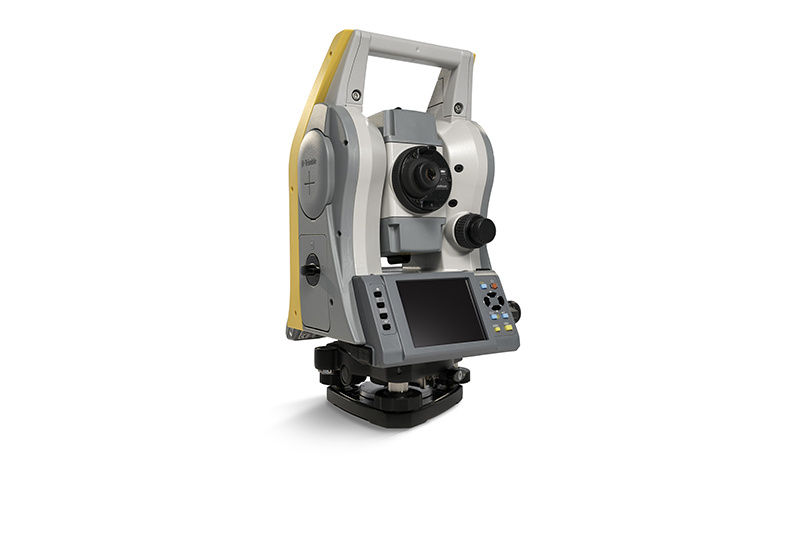

Trimble C5 Mechanical Total Station
Product description
Product Details
The C5 offers the easy setup Trimble users have come to expect. The autofocus powered by Nikon enables the C5 to quickly and precisely focus on the anticipated distance, so users can simply sight, shoot and go. That means any day spent in the field can be highly productive. Superior Nikon optics give you crisp, bright sightings even in low light conditions. The results are always precise and true—which ensures greater productivity back in the office, too. There’s no need to return to the field, because you get it right the first time.
Distance measurement |
Range with specified prisms |
Good conditions |
C5 |
C5 HP |
|
With single prism 2.5in (6.25cm) |
16,404 ft (5,000m) |
9,843 ft (3,000m) |
|||
With reflector sheet 2in*2in (5cm*5cm) |
984 ft (300m) |
886 ft (270m) |
|||
Reflectorless mode |
C5 |
Good |
Normal |
Difficult |
|
KGC(90%) |
2,625 ft (800m) |
1,640 ft (500m) |
820 ft (250m) |
||
KGC(18%) |
1,312 ft (400m) |
984 ft (300m) |
771 ft (235m) |
||
|
|||||
C5 HP |
Good |
Normal |
Difficult |
||
KGC(90%) |
1,640 ft (500m) |
1,312 ft (400m) |
820 ft (250m) |
||
KGC(18%) |
1,148 ft (350m) |
820 ft (250m) |
656 ft (200m) |
||
Accuracy in standard measurement mode |
|
C5 |
C5 HP |
||
Prism |
±(2mm+2ppm) |
±(1mm+1.5ppm) |
|||
Reflectorless |
±(3mm+2ppm) |
±(2mm+2ppm) |
|||
Measuring interval |
C5 |
Standard mode |
Fast standard mode |
Tracking mode |
|
Prism mode |
1s |
0.5s |
0.3s |
||
Reflectorless mode |
1s |
0.5s |
0.3s |
||
|
|||||
C5 HP |
Standard mode |
Fast standard mode |
|||
Prism mode |
1.6s |
1.2s |
|||
Reflectorless mode |
2.1s |
1.6s |
|||
Angle measurement |
Accuracy |
1″(0.3 mgon), 2″(0.6 mgon), 3″(1.0 mgon), 5″(1.5 mgon) |
|||
Reading system |
Absolute encoder |
||||
Circle diameter |
2.4in (62mm) |
||||
Horizontal/ vertical angle |
Diametrical/ Single |
||||
Telescope |
Tube length |
5.0in (128mm) |
|||
Image |
Erect |
||||
Magnification |
30x (19x/ 38x with optional eyepieces) |
||||
Effective diameter of objective |
Trimble C5 |
Trimble C5 HP |
|||
1.77in (45mm) |
1.57in (40mm) |
||||
EDM diameter |
Trimble C5 |
Trimble C5 HP |
|||
1.97in (50mm) |
1.8in (45mm) |
||||
Field of view |
1°25′ |
||||
Resolving power |
3″ |
||||
Minimum focusing distance |
49 ft(1.5m) |
||||
Laser pointer |
Coaxial red light |
||||
Tracklight |
Yes |
||||
Reticle illumination |
Yes, 4 steps |
||||
Tilt sensor |
Type |
Dual-axis |
|||
Method |
Liquid-electric detection |
||||
Compensation range |
±3′ |
||||
Communications |
Communication ports |
1 x serial(RS-232C), 2 x USB (host and client) |
|||
Wireless communications |
Integrated bluetooth |
||||
Power |
Output voltage |
3.6V |
|||
Full charging time |
approx. 6h |
||||
Operating time |
|
C5 |
C5 HP |
||
Continous angle-only measurement |
14h |
19h |
|||
Distance/ angle measurement every 30s |
12h(AF every 30S) |
18h |
|||
Continous distance/ angle measurement |
7h |
10.5h |
|||
General specifications |
Auto focus |
Trimble C5 |
Yes |
||
Trimble C5 HP |
No |
||||
Level vials |
10′/ 2mm |
||||
Tangent clamps |
Yes |
||||

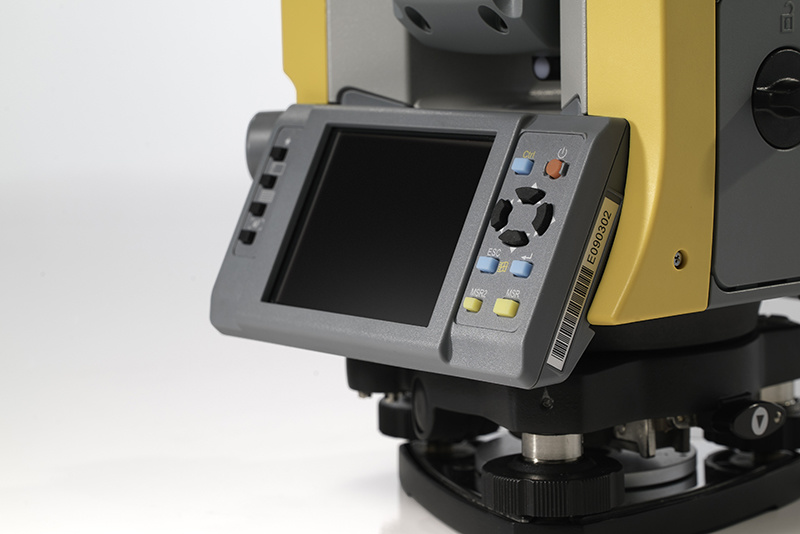

Display face 1 |
Color LCD back-lit (640*480 pixel) |
||||
Display face 2 |
Color LCD back-lit (640*480 pixel) |
||||
Operating system |
Windows® embedded compact 7 |
||||
Processor |
Dual core 800 MHz |
||||
Point memory |
512 MB RAM, 4GB flash memory |
||||
Internal plummet |
Optical or class 2 laser |
||||
Optical plummet |
Magnification |
3x |
|||
Field of view |
5° |
||||
Minimum focusing distance |
0.5m |
||||
Dimensions(W*D*H) |
8.1in x6.7in x12.5in (206mm x 169mm x 318mm) |
||||
Weight(approx.) |
Trimble C5 |
9.5lb (4.3kg) |
|||
Trimble C5 HP |
9.8lb (4.4kg) |
||||
Battery |
0.2lb (0.1kg) |
||||
Carrying case |
7.3lb (3.3kg) |
||||
Environmental |
Operating temperature range |
Normal |
-4ºF to 122ºF (-20ºC to 50ºC) |
||
Winterized |
-22ºF to 122ºF (-30ºC to 50ºC) |
||||
Storage temperature range |
Normal |
-13ºF to 140ºF (-25ºC to 60ºC) |
|||
Winterized |
-22ºF to 140ºF (-30ºC to 60ºC) |
||||
Atmospheric correction |
Temperature range |
-40ºF to 140ºF (-40ºC to 60ºC) |
|||
Barometric pressure |
15.8 inHg to 39.3 inHg(400mmHg to 999mmHg) |
||||
Dust and water production |
IP66 |
||||
Certification |
Class B part FCC certification, CE mark approval.RCM Mark. |
||||
C5 |
Prism/ Reflectorless mode |
Class 1 laser |
|||
Laser plummet/ Laser pointer |
Class 2 laser |
||||
C5 HP |
Prism mode |
Class 1 laser |
|||
Reflectorless/ Laser point |
Class 3R laser |
