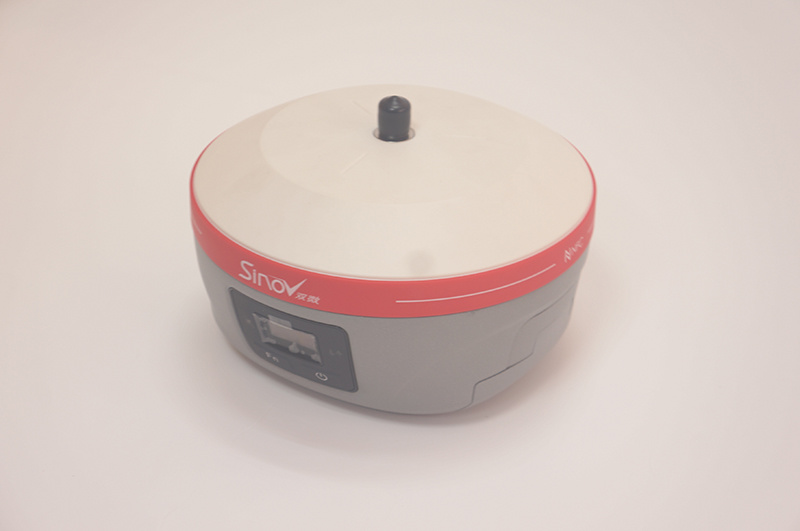

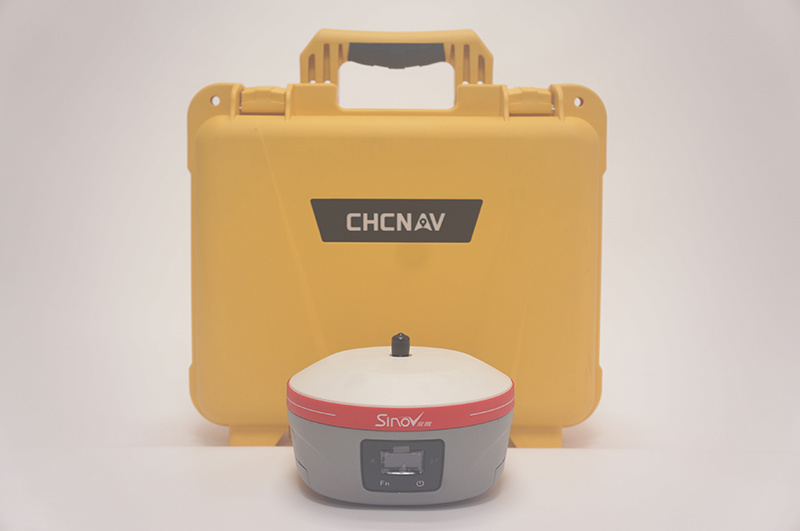

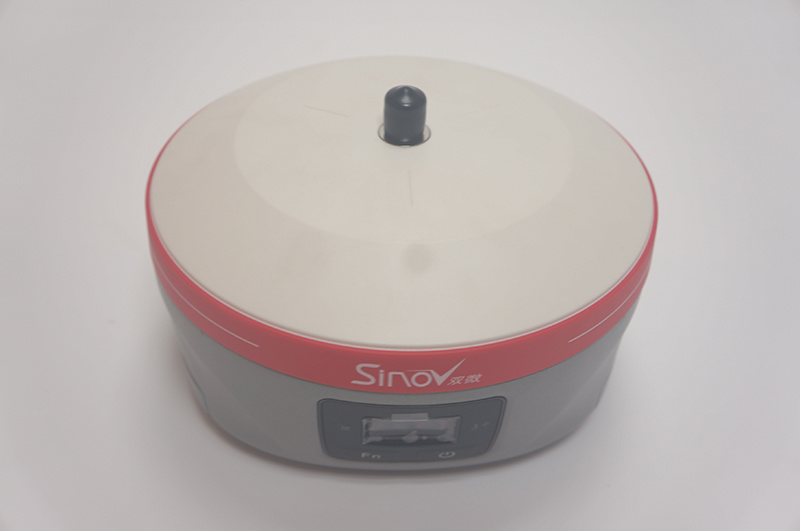

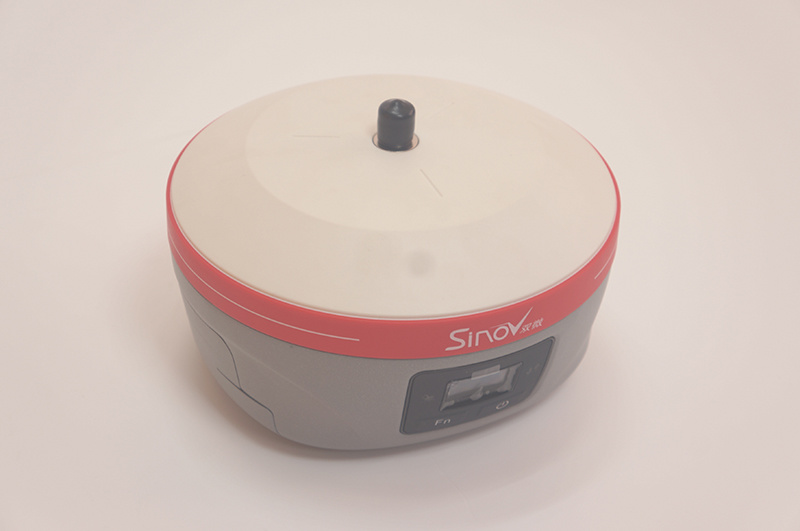

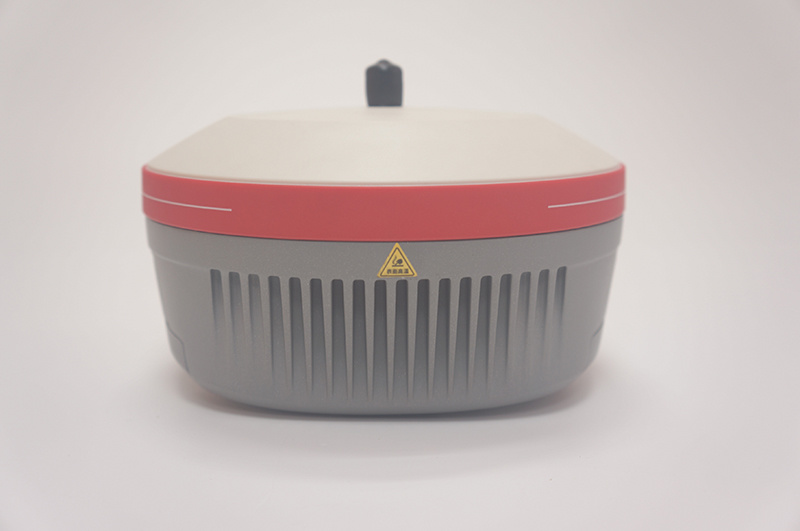

CHCNAV Sinov M1 Professional Base Station

Category:

Product description

Sinov M1 professional base station, plug-in radio terminator, supports 5-star 16-band signal, adopts CHCNAV data link concurrent communication technology, and starts the super dual-transmission mode with one key;
Contact now

Product Details


  1. Annual surveying and mapping flow;
  2. large-capacity lithium battery, super battery life, solve the problem of built-in radio mode battery life;
  3. support remote assistance, remote operation to help customers solve problems encountered during use and improve work efficiency.



Receiver characteristics

Satellite tracking

GPS+BDS+Glonass+galileo+QZSS
Support Beidou third-generation satellites
support five-satellite sixteen-frequency

Operating system

Linux system

Initialization time

<5s

Initialize reliability

>99.99%

Receiver appearance

Buttons

1 dynamic/static switch button, 1 power button

Indicator light

1 differential signal light, 1 satellite light

Display screen

1 LCD display screen

Nominal accuracy

Static accuracy

Plane accuracy:±(2.5+ 0.5×10-6×D) mm

Elevation accuracy:±(5+0.5×10-6×D) mm

RTK accuracy

Plane accuracy:±(8 + 1×10-6×D) mm

Elevation accuracy:±(15+ 1×10-6×D) mm

Stand-alone accuracy

1.5m

Code differential accuracy

Plane accuracy:±(0.25+ 1×10-6×D) m

Elevation accuracy:±(0.5+ 1×10-6×D) m

Electrification parameters

Battery

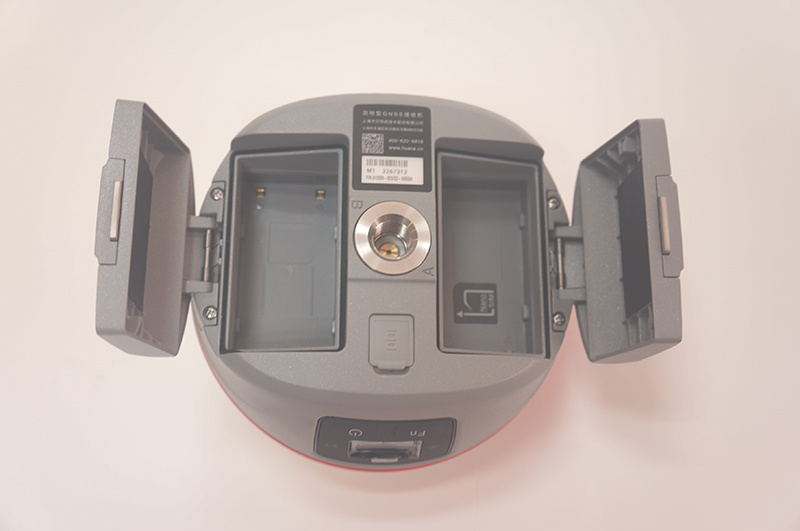

Removable 14000mAh lithium battery,
can support base station for working 12+ hours

External power supply

can be powered by DC power,
can be powered by 220V AC power,
can directly supply power through the radio (9-24) V DC

Physical characteristics

Size

Φ160.54 mm*103 mm

Weight

1.73kg

Material

Magnesium alloy AZ91D body

Working temperature

-45ºC~+85ºC

Storage temperature

-55ºC~+85ºC

Waterproof & Dustproof

IP68

Anti-shock vibration

IK08

Anti-drop

Resist 2 meters free fall

Data communication

I / O interface

1 external UHF antenna port

One seven-pin data port interface,
support power supply, differential data output

1 nano sim card slot

Built-in esim

Radio

Built-in transceiver integrated radio
power: up to 5W

Network module

Support 4G full Netcom

Wi-Fi

802.11 b/g/n

Bluetooth

BT 4.0, backward compatible with BT2.x,
the protocol supports Win/Android/IOS system

NFC

Support NFC flash connection

Data output

Output format

NMEA 0183, binary code

Output method

BT/Wi-Fi/RS232/Radio

Static storage

Storage format

Direct recording of HCN, HRC, RINEX,
compressed RINEX

Storage room

Standard 8GB storage, support space protection

Download method

FTP remote push + local one-click download,
HTTP download

Receiver function

One-button start

BT/Wi-Fi/RS232/Radio

Remote upgrade

One-click remote upgrade to improve work efficiency

Base station offset warning

When the location of the base station changes due to an unexpected situation, the hand-controller terminal immediately issues a warning
