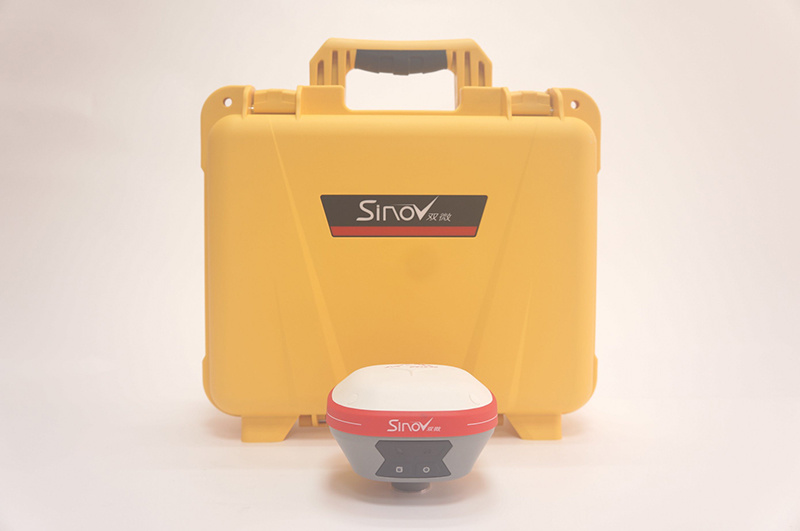

CHCNAV Sinov M6 II GNSS Receiver

Category:

Product description

Our company can support you with this kind of surveying & mapping instrument. Here you can get a view of some hot-selling and high-quality model:
Contact now

Product Details

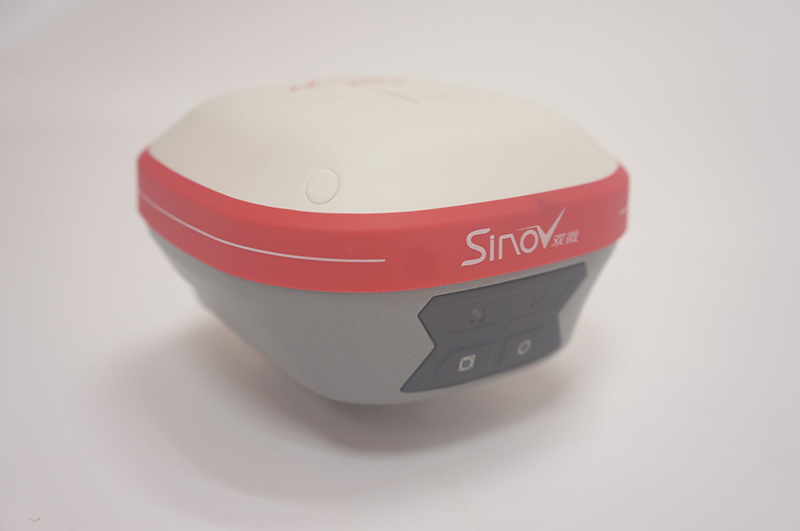

1.CHCNAV Sinov M6II Pocket RTK, small and light, only 0.73kg including battery, compared with the previous generation product, the weight of the whole machine is reduced by 50%, more convenient to carry, and less tiring to work.



2.M6II Pocket RTK Handbook, free 3 years of surveying and mapping traffic, use in network mode More convenient; large-capacity lithium battery, super battery life, make the measurement no longer wait.



Receiver Characteristic

Satellite System

GPS+BDS+Glonass+Galileo+QZSS,
support Beidou 3rd generations,
support five-star twenty-one frequency

Channels

624

Operatin system

Linux system

Initialization time

<5s

Initialize reliability

>99.99%

Receiver appearance

Buttons

1 dynamic/static switch key, 1 power key

Indicator light

1 differential signal light, 1 satellite light,
1 static data acquisition light, 1 power light

Nominal Precision

RTK precision

Horizontal accuracy:±(8 + 1.0×10-6×D) mm

Vertical accuracy:±(15 + 1.0×10-6×D) mm

Static precision

Horizontal accuracy: ±(2.5+ 0.5×10-6×D) mm

Vertical accuracy: ±( 5 + 0.5×10-6×D) mm

Code differential precision

Horizontal accuracy: ±(0.25+ 1×10-6×D) mm

Vertical accuracy: ±( 0.5 + 1×10-6×D) mm

Electrification parameters

Battery

Built-in 6800mAh lithium battery

External power supply

Support external power supply via USB port

Physical characteristics

Size

119 mm*119 mm * 85mm

Weight

0.73Kg

Material

Magnesium alloy AZ91D

Working temperature

-45ºC~+75ºC

Storage temperature

-55ºC~+85ºC

Waterproof and dustproof

IP68

Anti-collision

IK08

Anti-drop

Resist 2 meters free fall

Data output

Output format

NMEA 0183, binary code

Output method

BT/Wi-Fi/Radio

Static storage

Storage format

Can directly record HCN, HRC, RINEX

storage Space

Standard 8GB built-in storage

Download method

Universal USB data download; HTTP downloadv

Data communication

I / O interface

1 external UHF antenna port

1 USB-TypeC interface,
support charging, power supply, data download

Network module

Supports 4G full Netcom

Radio

Built-in high frequency 450-470MHz single receiver radio

Bluetooth

BT4.0, backward compatible with BT2.x,
compatible with Windows, Android, IOS systems

Protocol

Transparent transmission, TT450

Wi-Fi

802.11 b/g/n

NFC

Support NFC flash connection

Receiver function

One-click match

Support hand-controller software to match base station data with one key

Remote upgrade

Software and hardware remote upgrade

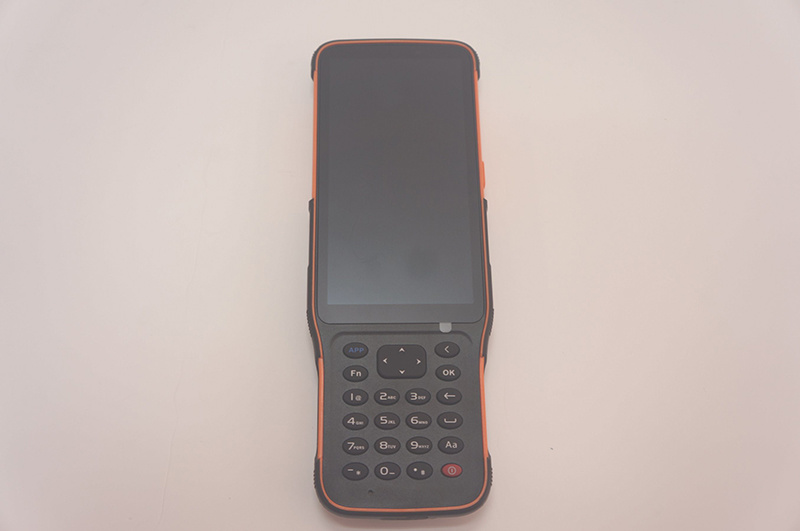

Hand-controller parameters

Type

HCE600

Network

4G full Netcom, built-in eSIM for three years of surveying and mapping traffic

Operating system

Android 10

CPU

Octa-core 2.0Ghz processor

LCD screen

5.5'' HD display

Working time

About 14 hours
