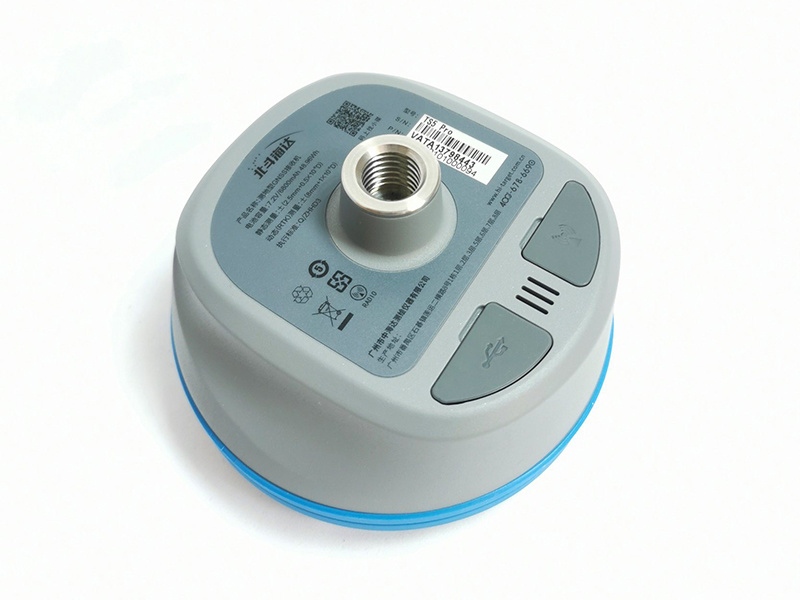

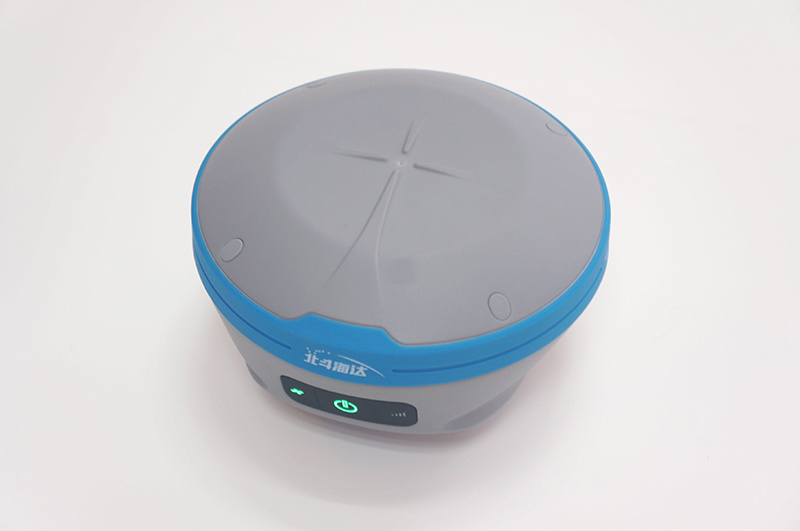

Hi-target TS5 Pro GNSS Receiver

Category:

Product description

Lightweight design, device case is reduced by 50%, Centering pole can be retracted to 1.25m, making it more portable for self-driving field work.
Contact now

Product Details


1.Support third-generation satellite signals, More than 50 satellites for searching and calculating,

The signal reception is more sensitive, the anti-interference is strong.



2.Built-in full protocol radio and 4G network, and the power is adjustable in high, medium and low.

Large iHand55 handbook, with octa-core processor and 5.5-inch bright touch screen.



settings

660 channels

BDS: B1I, B2I, B3I, B1C, B2a

GPS: L1, L2, L5

GLONASS: L1, L2

GALILIEO: E1, E5a, E5b

QZSS: L1, L2, L5

SBAS: support

Output format

ASCII.NMEA-0183, binary code

Positioning output frequency

1Hz-20Hz

Static data format

GNS, Renix dual format static data

Diffiencial format

CMR, RTCM2.X, RTCM3.0, RTCM3.2

Network mode

VRS, FKP, MAC, support NTRIP protocol

System settings

Operating system

Linux

Start time

3 second

Data storage

Bulit-in 8GB ROM, support automatic cycle storage of static data

Presion & Reliability

RTK positioning precision

Vertical: ±(8+1x10-6D)mm  (D is the distance between the measured points)

Horizon: ±(15+1x10-6D)mm  (D is the distance between the measured points)

Static positioning precision

Vertical: ±(2.5+0.5x10-6D)mm  (D is the distance between the measured points)

Horizon: ±(5+0.5x10-6D)mm  (D is the distance between the measured points)

DGPS positioning precision

Vertical: ±0.25m+1ppm;  Horizon: ±0.5m+1ppm

SBAS positioning precision

0.5m

Initialization time

<10s

Initialization reliability

>99.99%

Communication unit

I/O port

Five-core interface, USB Type-C interface, SMA interface, Nano SIM card slot

Bulit-in eSIM card

Including 3 years of Internet access fee, no need to insert a card to access the Internet

Built-in 4G network communication

TDD-LTE, FDD-LTE, WCDMA, EDGE, GPRS, GSM

WIFI communication

802.11 a/b/g/n access point & client-side mode

Bluetooth communication

Bluetooth® 4.2/2.1+EDR, 2.4GHz

Built-in radio

Built-in transceiver radio

Power: 0.5W/1W/2W adjustable

Frequency: 410MHz-470MHz

Protocol: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SOUTH

Numbers of channels: 116 (16 of them are configurable)

External radio

All-protocol external radio

Power: 10W/30W adjustable

Frequency: 403MHz-473MHz

Protocol: HI-TARGET, TRIMTALK450S, TRIMMARK III, TRANSEOT, SOUTH, CHC, SATEL

Transmission rate: 19.2 kbps/9.6 kbps adjustable

Numbers of channels: 116 (16 of them are configurable)

Sensor

Electric bubble

Smart centering

Tilt measurement

Built-in high-precision inertial navigation, Automatic posture compensation, No correction required, Anti-magnetic interference

User Interface

Button

2 buttons

Screen

0.94 inches 240*120 high precision LED colorful screen

LED indicators

Satellite indicator; signal indicator

Function & Application

Advanced Function

ATG, NFC, WebUI, U disk firmware upgrade, network relay

Smart Application

Intelligent base station, intelligent voice, function self-test, fast charging, AR surveying, AR stakeout

Remote Service

Online upgrade, remote control

Cloud Service

Device management, location service, data analyse, collaborative work

Physical Characters

Receiver's Battery

Built-in high-capacity lithium battery, 6800mAh/7.4V, can supply receiver's work for 10 hours

Fast Charging

USB PD3.0 super fast-charging, charging time< 3.5 hours; support power bank charging

External power supply

6-28V Wide voltage DC design, five-core interface

Size

156mm x 77mm

Weight

≤1.25kg(including battery)

Power Consumption

4.2W

Material

The shell is made of magnesium alloy material

Environment Characters

Waterproof & Dustproof

IP68

Anti-drop

Resist 2 meters natural drop

Relative Humidity

100% non-condense

Working Temperature

-30ºC~70ºC

Storage Temperature

-40ºC~80ºC
