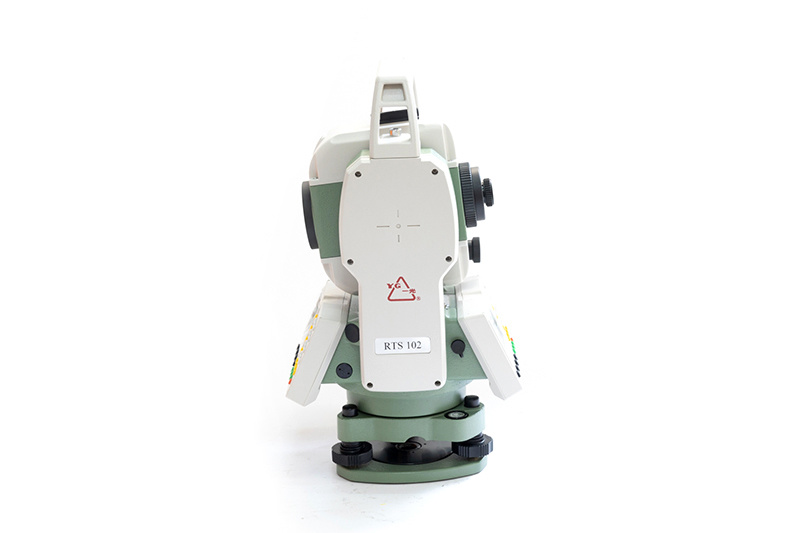

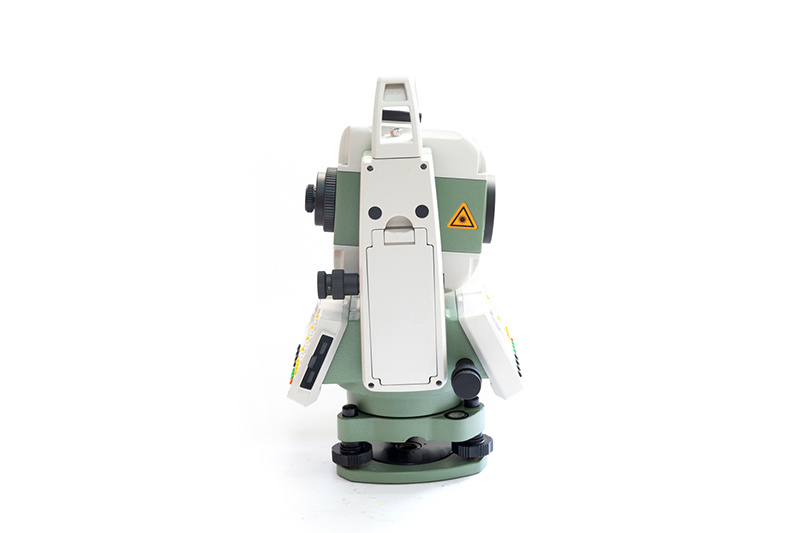

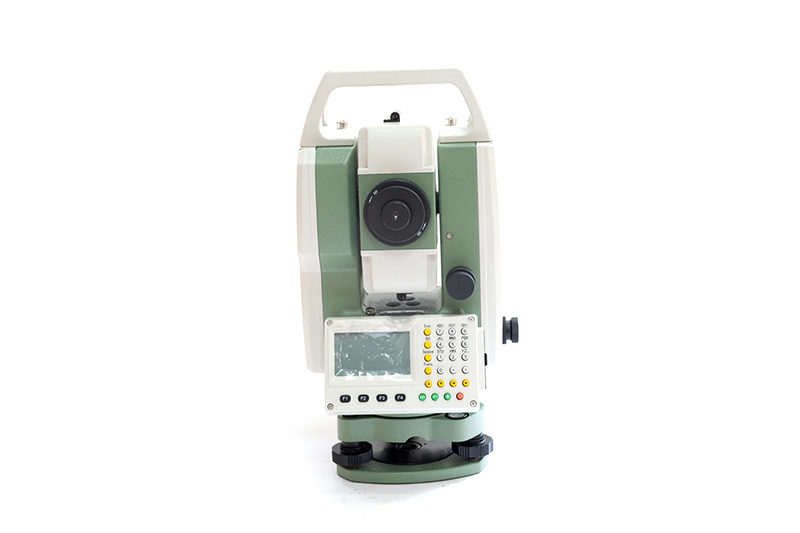

FOIF RTS102 Total Station
Product description
Product Details
1.New stand design
2. 32-bit microprocessor
3. Absolute coding system
4. USB port for fast communication
5. Laser ranging, long free prism ranging (R series)
6. Large-capacity storage, expandable SD card (standard 4G)
7. Large capacity lithium battery
8. Optimize the software operation process
9. New fast digital ranging head
Distance measurement |
|
RTS102 |
5000m/single prism |
RTS102R5 |
500m/non-prism; 800m/reflector; 5000m/single prism |
RTS102R6 |
600m/non-prism; 800m/reflector; 5000m/single prism |
RTS102R8 |
800m/non-prism; 1200m/reflector; 6000m/single prism |
RTS102R10 |
1000m/non-prism; 1200m/reflector; 6000m/single prism |
Precise measurement |
0.3S |
Precision |
±(2mm+2×10-6·D) |
Angle measurement |
|
Angle measuring method |
Absolute encoding (code disc diameter 79mm) |
Accuracy |
2″ |
Compensation range |
±4′ |
Telescope |
|
Image |
Erect |
Field of view |
1°30′ |
Objective lens effective aperture |
Φ45mm |
Resolution |
3″ |
Magnification |
30X |
Shortest sight distance |
1.0m |
Power |
|
Voltage |
7.4V DC(rechargeable lithium-ion battery) |
Working time |
≥ 24 hours |
Others |
|
Display |
6-line dot matrix LCD display on both sides |
Keyboard |
Full numeric keypad |
Communication |
RS-232C/USB/SD card copy |
Storage |
120,000 points, hot-swappable SD card |
Waterproof and dustproof |
IP66 |
Nanjing Cetu Surveying Instrument Co., Ltd. was founded in 2015. Our company is known as Nanjing Jingwei Surveying Instrument Sales and Service Center (founded in 1992), which was the former sales & service platform of Nanjing Surveying instrument Factory.
The main products of our company includes GNSS receiver, total station, laser distance meter, theodolite, level, walkie talkie, etc. Our company has distribution rights of FOIF, Hi-Target and many other domestic well-known brands. In addition, Trimble(America) authorized our company as a special contractor.
Over the decades, we have established great credit in the business, and we got the support of global users. "Quality first, customer first", we will always do our best to provide professional services for our customers.
